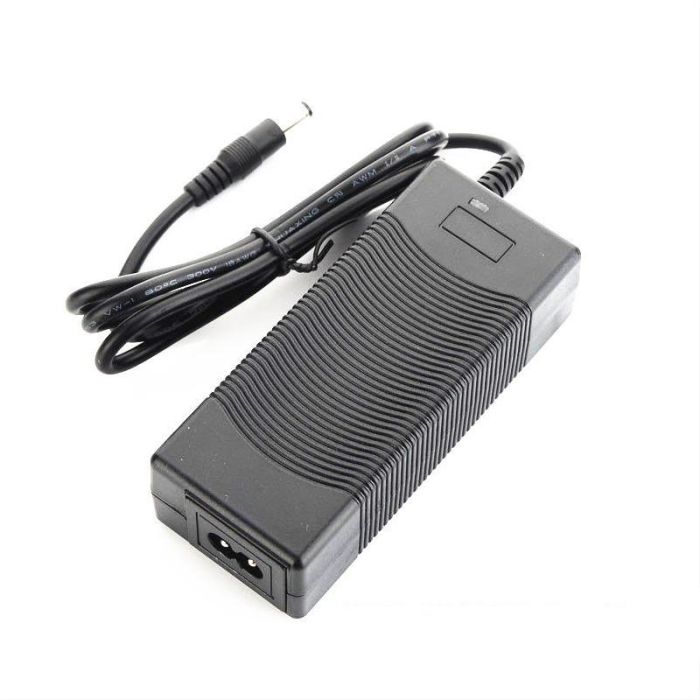

LiitoKala 6S 25.2V 2A Li-ion Battery Charger

Specitification:

Charging voltage, 25.2V, light green when no load

Charging voltage range, the highest voltage is not higher than 25.5V, the voltage in the constant current phase is random, but not higher than 25.5V

Output current, 2A, constant current charging, the indicator light is red

Conversion current, 200mA-300MA, after full conversion, the indicator light is green

Ripple and noise (Note 3), <100mVp-p (constant voltage)

Line adjustment rate (Note 4), ±0.8%

Load regulation rate (Note 5), ±1%

DC output power, 50.4W

Efficiency, >85% (maximum output voltage, full load)

DC voltage adjustable range, 0-25.2V

Input voltage range, 100 ~ 240VAC; 47 ~ 63Hz; 140-350VDC

Input current, 0.03A/230V

Inrush current, cold start current 2A/230V

Leakage current, <3.5mA

Overload protection, 105%~150% Type: FOLDBACK current limit output Reset: automatic recovery

Temperature coefficient, ±0.03% °C (0 ~ 50 °C) OUTPUT

Start, rise, hold time, 200ms, 50ms, 30ms

Shock resistance, 10 ~ 500Hz, 2G 10min. / 1 cycle, duration 60 minutes, each axis

Pressure resistance, input--output: 1.5KVAC

Isolation resistance, input and output: 10M Ohms

Working temperature, humidity, -10 ° C ~ +50 ° C, 20% ~ 90% RH

Storage temperature, temperature, -10 ° C ~ +60 ° C, 20% ~ 90% RH

Dimensions, 115 × 48 × 30 mm

Package include:

1pcs charger
