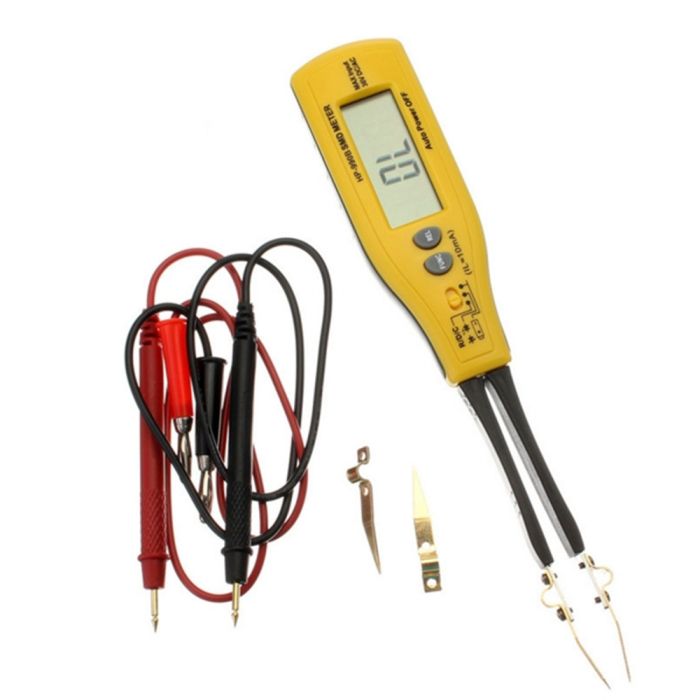

HP-990B Auto Range SMD Meter Resistor Capacitor For Diode Continuity Battery Tester
Continuity Check: When the resistance is less than approx.30?,The Buzzer sounds.
Zener/LED: Open Voltage: MIN 20V, Testing Current: Appr. 1mA
Battery Power: Loading Current: Approx. 10mA ±1.5rd%
Features:
Display: 4000counts
Range Select: Auto
Battery Test
Diode Test
Continuity Buzzer
Zener/LED test: Open Voltage more than DC 20V
Relative Value
Auto Power Off
Specifications:
Resistance: 400Ω/4KΩ/40K/400K/4MΩ/40MΩ/ ± (2.0%rdg +5dgt) ± (2.5%rdg +5dgt)
Capacitance: 4nF/40nF/400nF/4?F ± (2.5%rdg +5dgt) ± (3.0%rdg +5dgt)
Diode Test: Open Voltage: 1.5V, Testing Current: 2mA
Continuity Check: When the resistance is less than approx.30?,The Buzzer sounds.
Zener/LED: Open Voltage: MIN 20V, Testing Current: Appr. 1mA
Battery Power: Loading Current: Approx. 10mA ±1.5rd%
Package List:
1 * HoldPeak HP-990B SMD Meter
1 * English Manual
1 * Carrying Box
1 * Replaceable Pin
