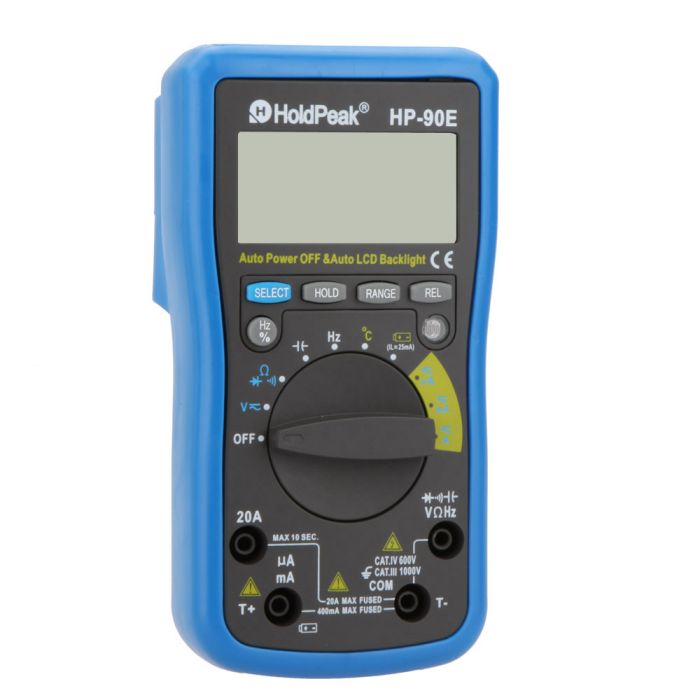

HP-90E Auto Range Digital LCD Multimeter,DMM Temperature Meter Battery Multitester

Features:

AC/DC voltage, current, resistance, frequency, capacitance, temperature, battery test
Test duty cycle

Continuity buzzer and diode test

Auto/manual range

Relative Value

Display: 3 1/2 digits LCD display, with a max. reading of 4000 counts

Auto LCD backlight display

Overload protection: full range protection

Data hold function

Low battery display

Over range display (“O L”)

Automatic power off

Specifications:

DCV: 400m/4/40/400V ±0.5%; 1000V ±0.8%

ACV: 400mV ±1.2%; 4/40/400/750V ±0.8%

DCA: 400u/4000u/40m/400mA ±1.2%; 4/20A ±2.0%

ACA: 400u/4000u/40m/400mA ±1.5%; 4/20A ±2.5%

Ohm: 400Ω/4K/40K/400K/4MΩ ±1.0%; 40MΩ ±1.5%

Freq.: 5.12Hz~5.12MHz ±0.1%

Cap.: 51.2nF~100uF ±2.5%

Temp.:-20 - 1000  ±3%

Battery Power Test: ±1.5%

General Characteristics:

Power Supply: 1 * 9V/6F22 (not included)

Dimensios: 163 * 88.5 * 50mm

Item Weight: 320g

Package Size: 23 * 15 * 7cm / 9 * 5.8 * 2.7in

Package Weight: 568g / 1.3lb

Package List:

1 * HoldPeak HP-90E Digital Multimeter
