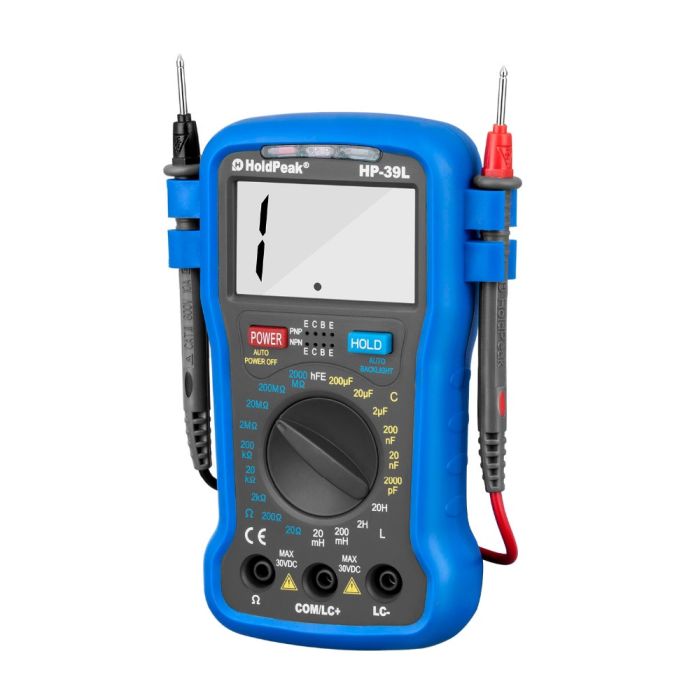

HoldPeak HP-39L Backlight LCD Digital LCR Meter Resistance Capacitance Inductance Tester
Accurate digital LCR meter, with 1999 counts digit LCD monitor to offer clear readings.
Designed for measuring resistance, capacitance, inductance, also can test transistor.
Built in CDS sensor to sensor the ambient brightness and control the LCD backlight automatically
Features:
Accurate digital LCR meter, with 1999 counts digit LCD monitor to offer clear readings.
Designed for measuring resistance, capacitance, inductance, also can test transistor.
Built in CDS sensor to sensor the ambient brightness and control the LCD backlight automatically
Auto Power Off: it will switch to standby mode automatically after 20mins if there's no operation.
Use the rotary switch to select functions and ranges.
Press HOLD key to lock display value.
With Auto-zero & Auto-polarity functions, Over-range indication & Low battery indication.
The anti-slip cover with test probe slots can protect multimeter and organize probes as well.
Comes with a wrist strap for your convenient carry and operation.
Accurate digital LCR meter, suitable for technicians, students and hobbyists. Compact and lightweight, comes with a wrist strap, convenient to carry.
Specifications:
Resistance Range: 20Ω/20Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ/2000MΩ
Resistance Resolution: 0.01Ω/0.1Ω/1Ω/10Ω/100Ω/1kΩ/10kΩ/100kΩ/1MΩ
Capacitance Range: 2000pF/20nF/200nF/2μF/20μF/200μF
Capacitance Resolution: 1pF/10pF/100pF/1nF/10nF/0.1μF
Inductance Range: 20mH/20mH/2H/20H
Inductance Resolution: 0.01mH/0.1mH/1mH/10mH
Material: Plastic
Color: Black + Blue
Display: 3 1/2 digits LCD Display
Power Supply: 1 x 9V Zinc-carbon battery (not included)
Operating Temperature: 0~40°C
Storage Temperature: -20~60°C
Package include:
1pcs Tester
