EM575 12V and 24V Automotive Battery Tester, Multifunction Digital Analyzer Diagnostic
1. Test all automotive cranking lead acid batteries, including ordinary lead acid batteries, AGM flat plate batteries, AGM spiral batteries, Gel batteries, and etc.
2. Directly detects bad cell battery.
INTRODUCTION

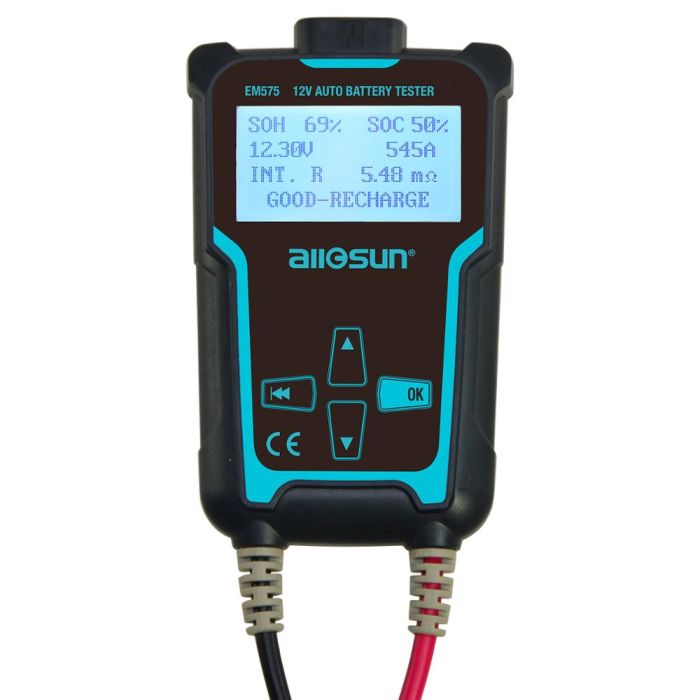

This instrument is a handheld, portable test tool designed to test 12V/24V automotive lead-acid storage batteries and 12V/24V automotive starting systems and charging systems.
It can easily, quickly and accurately test the actual cold cranking amps capability of automotive battery, health state of automotive battery, automotive cranking system and charging system.
It can be used by maintenance personnel to troubleshoot automotive battery problem and automotive starting/charging system problem.
It can be used in automobile factories, automotive maintenance and repair workshops, automotive battery factories, educational organizations, and etc, or used by automotive battery distributors.
FEATURES
1. Test all automotive cranking lead acid batteries, including ordinary lead acid batteries, AGM flat plate batteries, AGM spiral batteries, Gel batteries, and etc.
2. Directly detects bad cell battery.
3.Reverse polarity connection protection. Reverse polarity connection will not damage the tester or affect the vehicle and battery under test.
4. Directly tests low battery, no need to fully charge battery before test.
5. Test standards include most usual battery standards around the world: CCA, DIN, EN, IEC and JIS.
6. Selectable languages: Chinese, English, Japanese, Russian, Spanish, German and etc.
7. The measuring range of 12 V batteries is 9 - 15V, the measuring range of 24 V batteries is 9 - 30V.
SPECIFICATIONS
Voltage Measuring Range: 9V to 30V DC
Battery Internal Resistance Measuring Range: 2 ~ 200 mΩ
Operating Temperature: 0℃ to 40℃
Storage Temperature: -20℃ to 60℃
Weight: About 258g
Package include：
1PCS*Automotive Battery Tester
