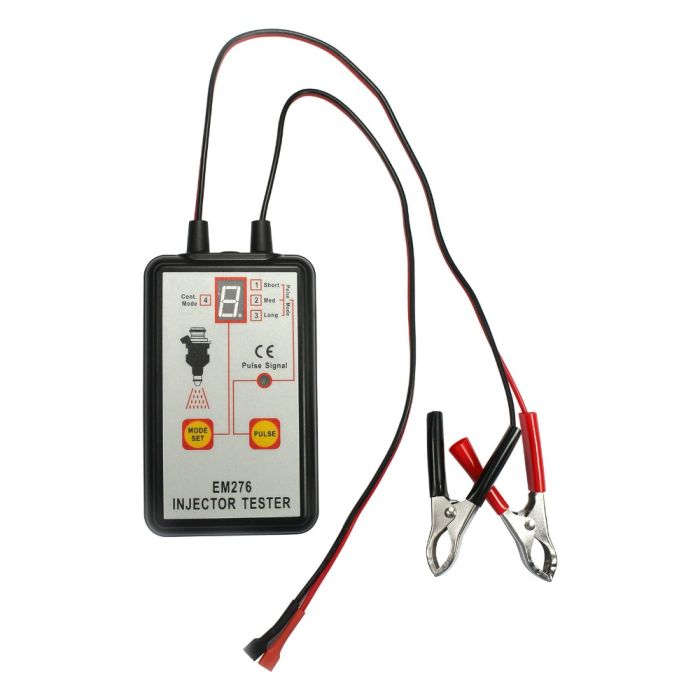

EM276 Injector Tester 4 Pluse Modes Tester Powerful Fuel System Scan Tool

Feature:

This tester can diagnose injector problems, you can use it on each injector individually to test stuck, leaking or burnt-out.

It used 12V vehicle battery as power supply.

It has 4 pulse modes and in the continuous working mode ( mode 4 ), it can help  you identify the injector good or not when you switch off the engine.

The lock mode can ensure the testing condition is same. It can work with any fuel pressure tester together.

Instructions:

Turn off the vehicle‘s engine

Connect Black / Red Clip to the Negative / Positive terminal of battery

Connect pulse output terminal to the fuel injector

Press the "MODE SET" key to select the desired pulse mode

Press the "PULSE" key, the tester will output pulse to the injector, and then the pulse signal indicator will light as indication

Explanations for 4 modes:

Mode 1:  the tester outputs 1 pulse, whose pulse width is about 250ms

Mode 2:  the tester outputs 50 pulse, every pulse's pulse width is about 7ms

Mode 3:  the tester outputs 100 pulse, every pulse's pulse width is about 3.5ms

Mode 4:  the tester outputs pulse continuously at the rate of 50 pulses per about 1450ms, every pulse's pulse width is about 7ms

specification:

Power Supply: 12V vehicle battery

Operation Environment: 0 C - 40C,

relative humidity < 80% Storage Environment: -10 C - 50C,

relative humidity < 85%

Size: 147x82x29mm (for main body only)

Weight: about 165g

Package include:

1PCS*Injector Tester
