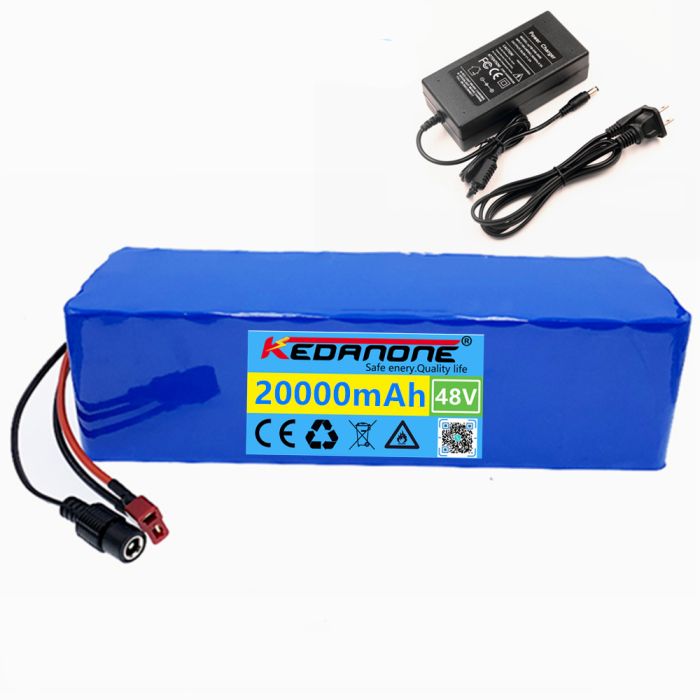

13S3P 48V 20Ah 1000W Li-ion Battery Pack For 54.6V Electric bicycle Scooter With BMS (1pcs)

Specitification:

Battery Type: 18650

Single cell voltage: 3.7V

Combination: 13 Series 3 and

Power :1000W

Nominal voltage: 48V Input voltage: 48V Output voltage: 48V

After the combined capacity: 20000mAh (20Ah)

Battery Dimensions: 238 * 68 *65mm (There may be a 10 mm error) 3 * 13

Outside packaging: Blue PVC

Inside with protective circuit: overcharge, over discharge, over current, short circuit protection!

For other needs can contact the owner, thank you new and old customers.

The battery charging requirements:

1. the need for a dedicated lithium battery charger;

2.Charging voltage: 48V

3.Charge current: greater than or equal to 5A

The battery discharge requirements:

1. Output 18 lines, length 200mm, red and black each one

2. Enter the outlet line leads to a 2.1 length 200mm

3. Rated discharge current: greater than or equal to10A

4. maximum instantaneous current: 40A

5. Maximum operating current: 13A

Pakage include:

1,1 pcs 48v battery (with BMS)

2. 1 pcs charger (Optional)
