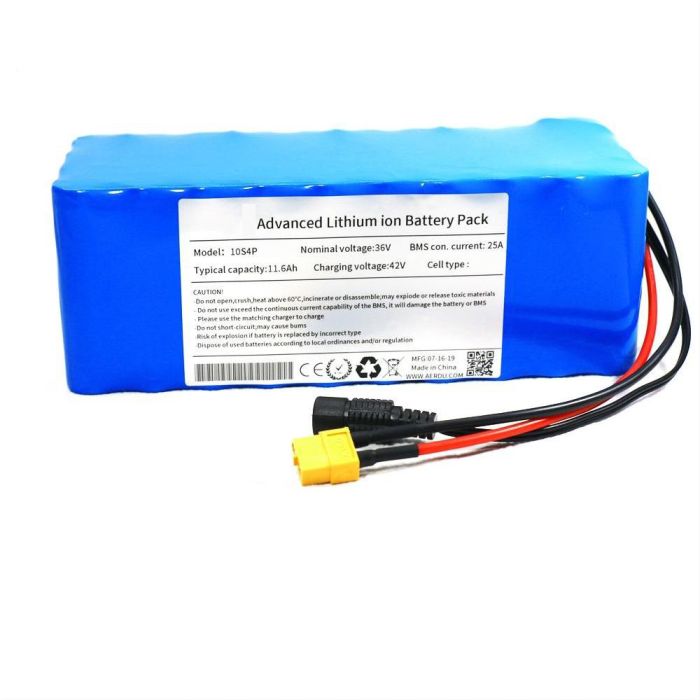

36V 11.6Ah 10S4P 18650 Lithium Battery Pack For Electric Bicycle with 25A BMS (1pcs)

Specifications:

Type: AED-29P(18650 2900mAh)

Cell count: 40 pieces(10S4P)

Nominal voltage: 36V/37V

Typical capacity: 11.6Ah/420Wh

Rated power: 600Watt

Output voltage range: 25V-42V

Discharge cut-off voltage: 25V

Charge cut-off voltage: 42V

Charge method: CC-CV

Charge current limit: 5A

Charge temperature: 0-45 ° C

Discharge temperature: -10-60 ℃

BMS work current: Discharge 25A Charge 5A

BMS type: Separate port

Connector: XT60 for discharge and DC5521 for charge

Storage temperature: -20-45 ° C (3 months)

Cycle life: 80% DOD after 500 cycles

Size: 185*85*70mm(±3mm) Weight: 1900g(±50g)

Package include:

1pcs battery
