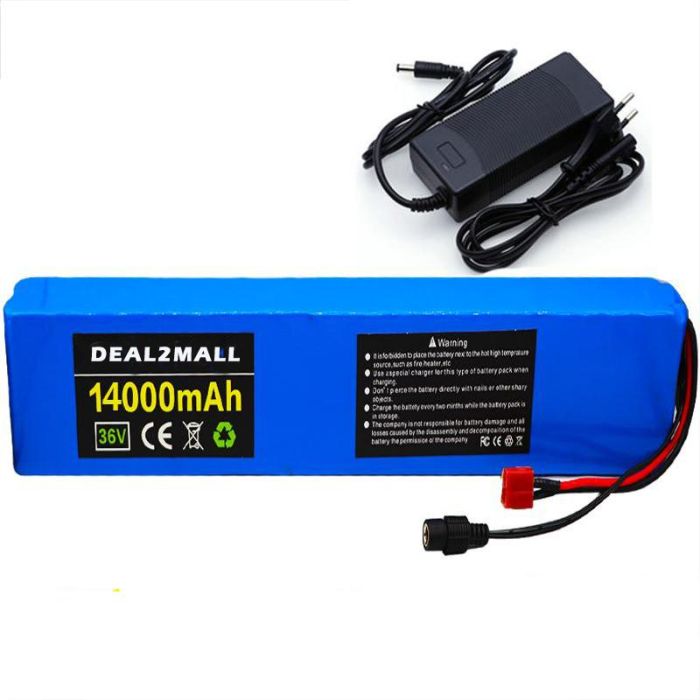

36V 10S4P 14Ah 42V 18650 lithium Li-ion battery pack For ebike electric bike scooter with 20A BMS

Basic Information
- Cell count: 40PCS
- Configuration: 10 sets in series (10S) of 4 cells (4P) in parallel , Built-in BMS protection,With overcharge, over discharge, short circuit protection
- Pack: PVC
- Weight: 2100g
- Width: 68mm
- Height: 38mm
- Length: 376mm
* Manual measurement, there will be deviations.

Connectors
- Discharge Connector: 16 # Red & Black Wire
- Discharge Wire Length (pack to connector end):  120mm
- Charge Connector: T plug
- Charge Plug Wire Length (pack to connector end):  120mm
* Manual measurement, there will be deviations.

Energy
- Nominal Voltage: 36V
- Output Voltage Range: 27.5v - 42v
- Nominal Capacity: 14Ah
- Nominal Power : 360Wh
*Test results will be affected by test conditions (eg, temperature, wire loss, test equipment, test parameters, etc.), please perform multiple tests and take the average of the results to reduce the deviation.
At a temperature of 25 , the deviation between the pure resistance discharge test result and the nominal data is controlled within 10%, which is normal.

Charging
- Charge mode: CC CV
- Use a 10S Lithium-ion battery dedicated charger to charge up to 42v(If you don't have a matching charger, you can buy one at our store.)
- Charge current 5A max

Discharge
- Continuous discharge current 20A

Cycle Life:
- More than 500 times, Capacity and performance will decrease as the number of cycles increases.

Application:
Electric bicycles, scooters, etc.
