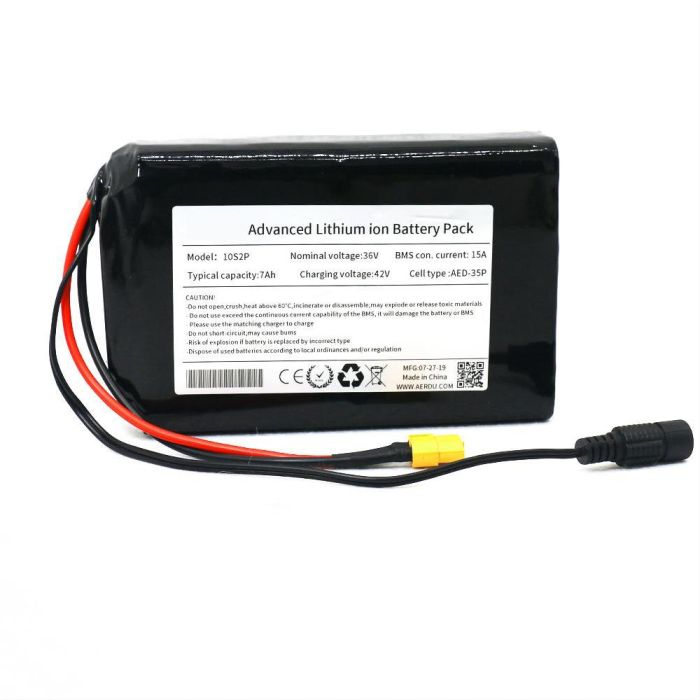

36V 10S2P 7Ah 450W 18650 Li-ion Battery Pack For Electric Bicycle
Nominal voltage: 36V
Charge voltage: 42V
Typical capacity: 7Ah/252Wh
Specifications:
Cell type: AED-35P(3.5Ah)
Cell count: 20 pieces（10S2P）
Nominal voltage: 36V
Charge voltage: 42V
Typical capacity: 7Ah/252Wh
Minimum capacity: 6.3Ah/226Wh
Rated power: 450Watt
BMS rated current: 15A discharge and 5A charge
BMS function:Overcharge, overdischarge, overcurrent, short circuit protection.
Connector: XT60 for discharge and DC for Charge
Output voltage range: 28V-42V
Discharge cut-off voltage: 28V
Charge cut-off voltage: 42V
Charge method: CC-CV
Max. Charge current: 5A
Charge temperature: 0-45 ° C
Discharge temperature: -10-60 ℃
Storage temperature: -20-45 ° C (3 months)
Cycle life: 80% DOD after 500 cycles
Size: 140 * 95 * 40 mm(±3mm)
Weight: 1000g(±50g)
Package include:
1pcs battery
